4.30.2015

Imperial Knight Lancer

So, a few weeks back I finished up my Imperial Knight Paladin based off the template by Newobmij.  During the many, many months it took me to complete (hey, I had a lot going on), Forge World put out a variant called the Knight Lancer.

Anyway, I saw a couple of easy ways Newobmij’s Knight template could be adapted to build a Lancer without too much trouble.  Now, I don’t really have the time to build this version, but what I thought I could do is go through the process of building a regular Knight again and point out the places where I’d change things if I wanted to build a Lancer.  You can get the main details there and the tweaks and options here.

Ready...?

Parts I and II are going to go pretty much the same.  It’s just some basic, core stuff with the torso, the engine and the head getting assembled.  Nothing different there.

The first big change is in Part III.  The head and neck are assembled the same, but when I go to gluethem together I want to flip the head so it’s pointing up rather than out.  That little point where it all comes together?  That should be the top now, not the front.

Helpful Hint--This arrangement may need a small spacer in the back when it's attached to the torso.  There’s enough neck for the head to make a solid join, but these things are always stronger if you can come from two directions.

With the head being a little higher, I’m going to skip the extra piece I called the cowl.  Which is fine, because the Lancer doesn’t have that element.

As seen on the template
The Forge World Lancer model is taller than the standard Knight, so my suggestion for Part IV is to use the “wasp waist” piece that I skipped in the original build.  This will also help give the Lancer a slightly more gaunt figure like the Forge World model.

Like the cannon barrels, this waist piece is very well done in that all the detail is built into this one piece.  I just need to cut it out, give it a curve on my hobby knife, and then roll the whole thing up.

Helpful Hint--This is now the major join between the hips and the chest, so I want more than just the thin edge of the cardboard connecting them (even if it’s doubled up).  Cut a strip and run it across the inside of the wasp waist, so it has a lot of surface on top or bottom for glue to grab at (I’ve done this before on the Baneblade and the Defiler). Don’t worry if it’s a little messy—all of this is going to end up inside the Lancer.  Just make sure it’s flush on the top and bottom.

The heraldry shield is the only thing in Part V.  It goes on the opposite shoulder for the Lancer model.  You could also give it a different shape by hole-punching the top corners rather than the side.

Part VI and VII and VIII are all just about building and assembling the legs. Nothing changes here.  Unless you want to go for a different pose.

There are some esthetic choices for Part IXPersonally, I’d cut out the shin armor, but mount it so it runs together as a single piece across the front.  You could add a detail/ decorative strip or angle in the front to hide the seam.  I wouldn’t use the knee or ankle armor.  We want that chicken-leg look

Now the big one.  Part X is weapons. The Lancer has a very different weapons loadout, so let’s talk about how to do this.  We need to build a lance and an ion shield.

The Lance is pretty simple.  It’s just a narrow gun barrel extending in either direction.  I could do it either like the Baneblade cannon (but a little smaller) or, in all honesty, the battle cannon barrel that comes with this template is a pretty good size.  Whichever method I use, I’d put a few “rings” along the length of it to help sell both the round aspect and the sort of  energy/magnetic/gauss aspect of the Lance.

The tip is a big diamond shape.  It looks tough, but it’s actually very simple.  I’ve made tapered points before for the Plaguereaper and the Silver Towers of Tzeentch.  This just tapers in both directions.  I could even be super clever and make one side shorter than the other.  This will sit right in the end of the barrel and... done.  A lance, just like that.  It can connect to the shoulder pad with a 3-4-5 triangle block, just like the chainsword did, so it can be posed a  bit. The other option would be building another knee joint, gluing that to the underside of the shoulder, an then using that as the “pivot” for the Lance.

The Ion Shield is a little trickier.  First it needs an arm.  Then it needs a shield to mount on the arm.  So, first things first...

The arm is just the knee and calf again.  Use the knee under the shoulder as another elbow (it’ll match the one on the Lance).  And now this arm should end in a flat surface (where the ankle would normally connect). To make a fist, just assemble a small box—something I’ve done here many times. Adding a few cardstock strips and shapes for detail helps sell it as a fist ( 1/4” circles would make good knuckles).

Alternately, if I wanted something a bit more elaborate, I could expand the idea of the Defiler’s power fist so its less of a claw and more of... well, a fist.

To build the ion shield, look for some basic shield clipart on your computer or on the web. I’d use a simple shape, but if you feel confident enough to go a bit more elaborate, it’d be a nice bit of “customizing.”  Print out two or three copies at what feels like an appropriate size (probably no more than 4” top to bottom)

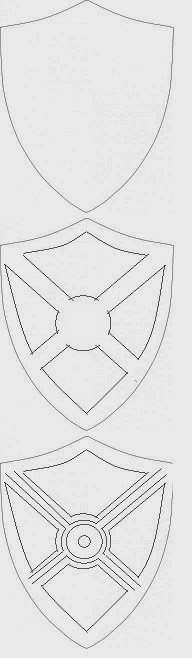

I think the easiest way to add detail is to make layers.  Draw a new outline (inline?) around the inside of the shield, then make a wide X across that.  Add a circle in the middle (maybe quarter-sized).  Then cut this all out so you have a kind of shield-lattice with four quadrants.

(Please pardon my attempts to explain with more childish pictures...)

Then take another copy of the clipart, trace and quarter it again, but this time make all the beams maybe half as wide.  And this time actually cut the inside of the center circle out, too. Now when these two pieces overlap the edges and center should look multi-layered.  Another 1/4” disc at the center gives some nice detail, or you could make a ribbon-less purity seal that size and give it a real “arc reactor” look.  Carefully glue these together (this is going to be one of those elements that draws the eye), wrap it in wax paper, and stack books on it.  Lots of books.  I’ve done this a few times when I really, really need something to be straight.  When it dries, it’ll be double-layered and very rigid.  Attach it to the wrist and arm in a dramatic way.

And there’s a lance and ion shield.

Parts XI and XII are some of the final details.  I skipped the tabard, then took one of the unused ankle-armor pieces, flipped it upside-down, and used it as a codpiece.  And then there’s all the purity seals, aquillas, and other items you can add at your discretion.

The basic T-piece I built to give the head some more detail will still work here.  If you wanted to give it a little more, two triangles with the tips cut off make a fine visor more in the Lancer style.  You can even give them a faint curl around the edge of a hobby knife so they sit right up against the head.  Glue one on either side of the head.

And there it is.  If I’ve got this all figured in my head, these tweaks to the template should give you a more-than-passable Knight Lancer

As a little addendum, since I started this post, Games Workshop announced their Warden/ Crusader model.  I was going to add on some thoughts about those, but I think that might have to wait for next week.  Right now, I need to get set up for Texas Frightmare Weekend in Dallas.  Stop by table #155 in the Made In Texas room and say hello.

But next week... more Knights.
